AVK STEMCAP
Ductile iron, top mounted A2 bolt, SANS 664, CTC/CTO, white/red mark, 250µm blue EP coating

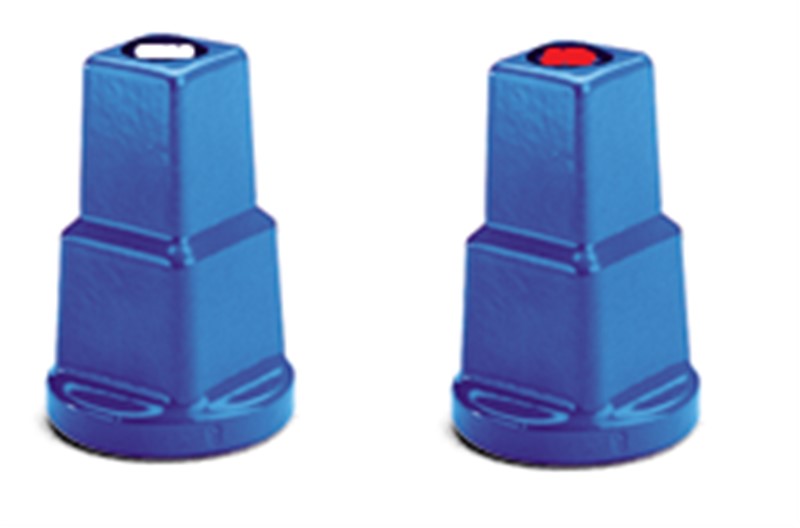

Stem cap for square top stem shafts
TheAVK ductile iron stem caps are designed to fit on a square end stem shaft with a 2.5° cone angle.
A 250µm thick epoxy coating corrosion protects the strong ductile iron core to ensure a long and trouble free service life.
| Variant 08/D-002 | |
|---|---|
| Connection: | Connection for stem square |
| Material: | Ductile iron |
| DN: | DN80 - DN100 |
| Closing direction: | Clockwise to Close or Clockwise to Open |
Features
- Ductile iron for maximum strength
- 250µm epoxy coating ensures corrosion protection for a long service life
- White insert for CTC
- Red insert for CTO
Downloads
Datasheet
Reference nos. and dimensions:
Scroll for more info
| Reference no. | Operating Direction |
F1 mm |
F2 mm |
Theoretical weight/kg |
|---|---|---|---|---|
| 08-080-74-100 | CTO-SR | 17-21 | 29-35 | 0.7 |
| 08-100-74-100 | CTO-SR | 19-23 | 29-35 | 0.7 |
