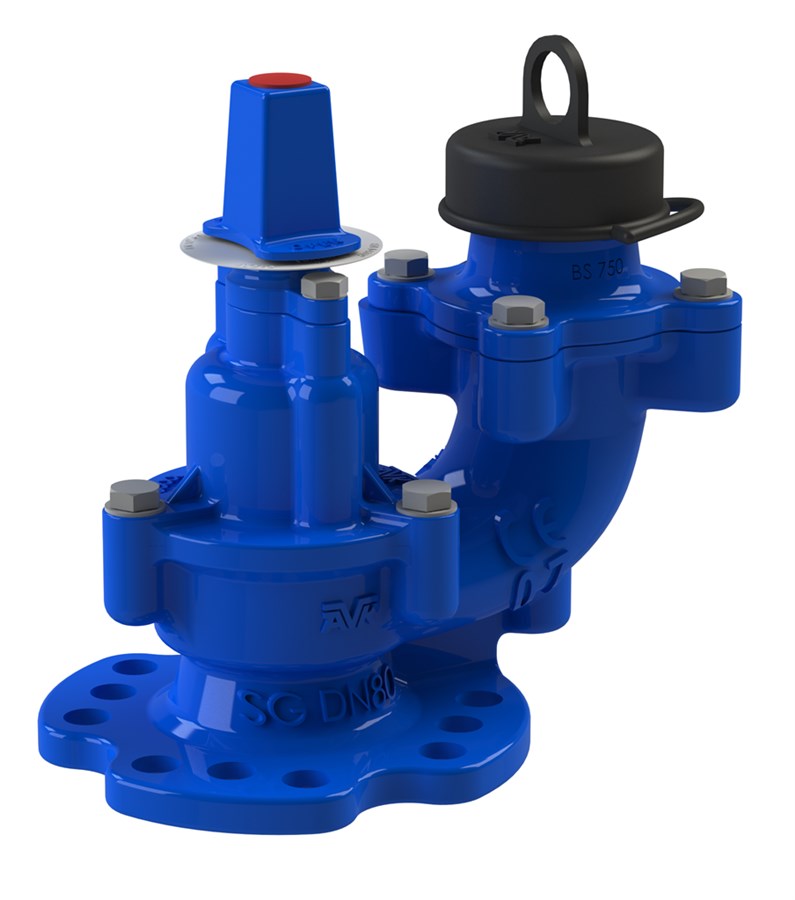

AVK UNDERGROUND FIRE HYDRANT, SQUAT TYPE, PN10/16
Bayonet outlet, CTO, red stemcap, fixed stopper, A2 bolts, 1.4021 stem, 250µm blue EP coating
Fire hydrant, clockwise to open, red stemcap, for use with water and neutral liquids to max. 70°C
The Series 29/388 is a squat fire hydrant suitable for use with water and neutral liquids, to a maximum temperature of 70°C. Complies with requirements of BS 750 and EN1074-2:2000 and EN 14339:2005, underground hydrants. Also to EN 1074-6 for potable (drinking) water.
| Variant 29/388-003 | |
|---|---|
| Connection: | Flanged |
| Material: | Ductile iron |
| DN: | DN80 |
| PN: | PN 16 |
| Closing direction: | Clockwise to Close, Stem Cap/White Insert |
Features
- Inlet flange universally drilled to PN10/16 and BS10 Table D/E
- Complies with Annex ZA of EN 14339 in respect of Construction Products Directive (CPR)(EU) 305/2011
- Low weight design
- Bayonet outlet to BS 750
- Exceeds flow requirements: Kv = 92 minimum 2000l/min @1.7 bar. Actual: Kv = 96, 2092 l/min @1.7 bar
- Fixed stopper
- Corrosion resistant construction, ductile iron coated with 250 µm, holiday free, WRAS approved, blue RAL 5017 epoxy in accordance with WIS 04-52-01, compliant with EN 1074-6 for disinfection products
- Clockwise to open, CTO (denoted by a red plastic insert in the stem cap)
Downloads
Datasheet
Certificate(s)

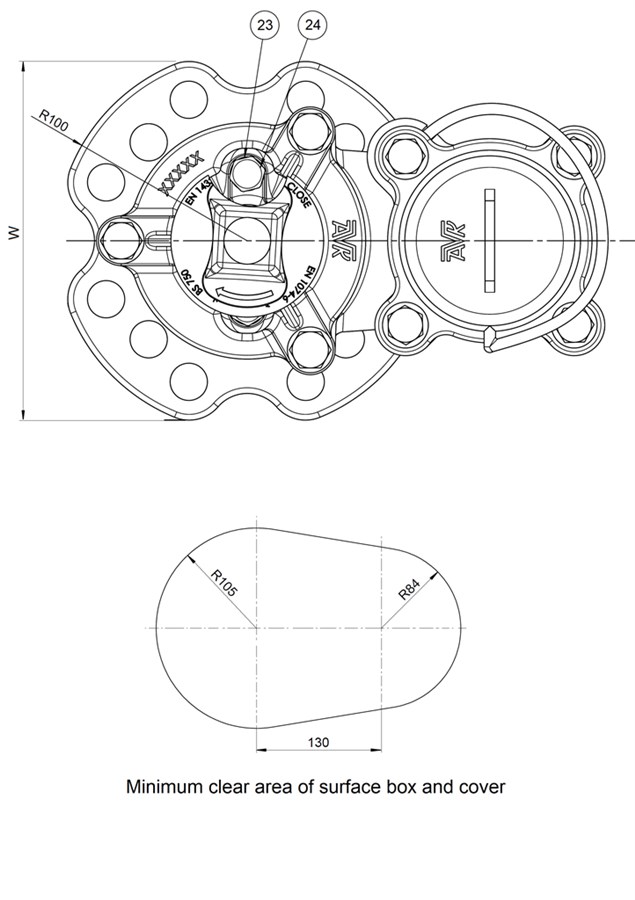

Outline drawings DXF
Reference nos. and dimensions:
Scroll for more info
| AVK ref. no. | DN mm |
H mm |
H1 mm |
H3 mm |
L mm |
L1 mm |
L2 mm |
W mm |
Theoretical weight/kg |
|---|---|---|---|---|---|---|---|---|---|
| 29-388-8-3110 | 80 | 240 | 300 | 281 | 281 | 127 | 104 | 188 | 13 |
Enquiry
Scroll for more info

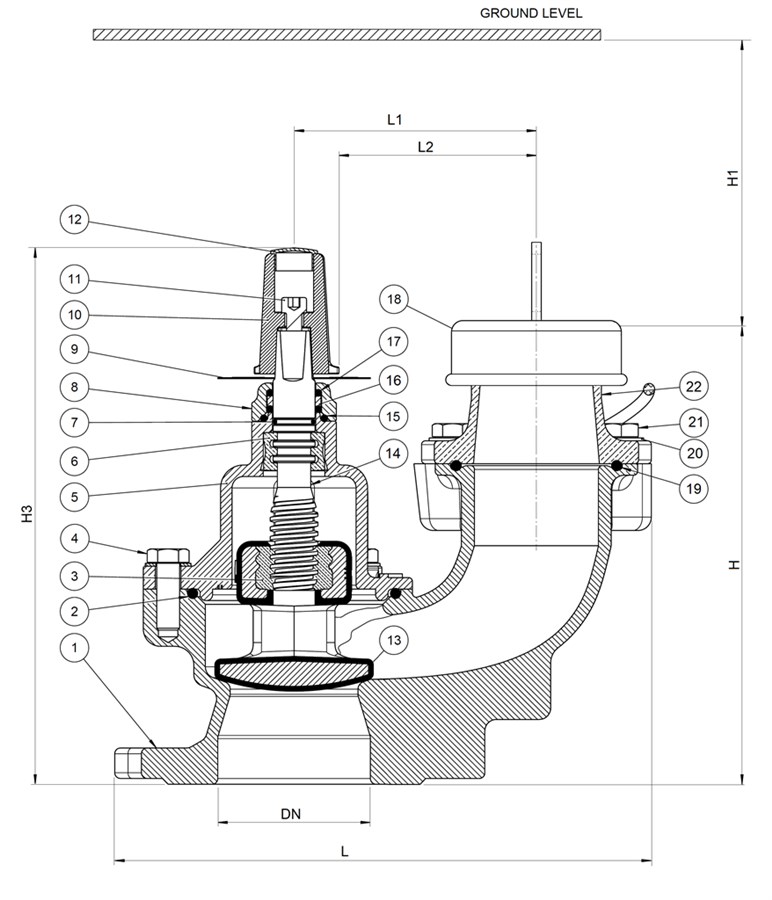

Components
| 1. | Body | Ductile iron GJS-500-7 |
| 2. | O-ring | NBR rubber |
| 3. | Stopper | Ductile iron GJS-500-7 |
| 4. | Bolt | Stainless steel A2 |
| 5. | Bonnet | Ductile iron GJS-500-7 |
| 6. | Thrust collar | Brass DZR CW602N |
| 7. | O-ring | NBR rubber |
| 8. | Gland flange | Ductile iron GJS-500-7 |
| 9. | Indicator plate | Plastic |
| 10. | Stem cap | Ductile iron GJS-500-7 |
| 11. | Bolt | Stainless steel A2 |
| 12. | Insert | Plastic |
| 13. | Seal | EPDM rubber |
| 14. | Stem | Stainless steel 1.4104 |
| 15. | O-ring | NBR rubber |
| 16. | Bush | PA 6.6 |
| 17. | O-ring | NBR rubber |
| 18. | Dust cap | Cast iron |
| 19. | O-ring | NBR rubber |
| 20. | Washer | Stainless steel A2 |
| 21. | Bolt | Stainless steel A2 |
| 22. | Outlet | Ductile Iron |
| 23. | Bolt | Stainless steel A2 |
| 24. | Washer | Stainless steel A2 |
Test/Approvals
- Max operating pressure:16 Bar
- Hydraulic test to BS 750, Seat: 1.1 x PN. Body: 1.5 x PN. Operating torque test
- Resistance to operating load - MOT - 105NM - MST - 210NM
- Kitemarked to BS750
- Approved according to Kitemark™ BS750 and EN 14339, certificate KM 53897
- WRAS approved for cold water use
- Drinking Water Inspectorate Regulation 31 compliant
Standards
- BS750, EN 1074 part 1 & 2, EN 14339:2005
- Double drilled PN10/16 and BS10 table D
-
WIMES 8.09 Compliant
