AVK GATE VALVE, FLANGED, NRS, UL/FM APPROVED, 250 PSI
ANSI B16.42 cl. 150, wrench nut, CTC, A4 bolts, Cu-alloy stem, 10 mil red FBE

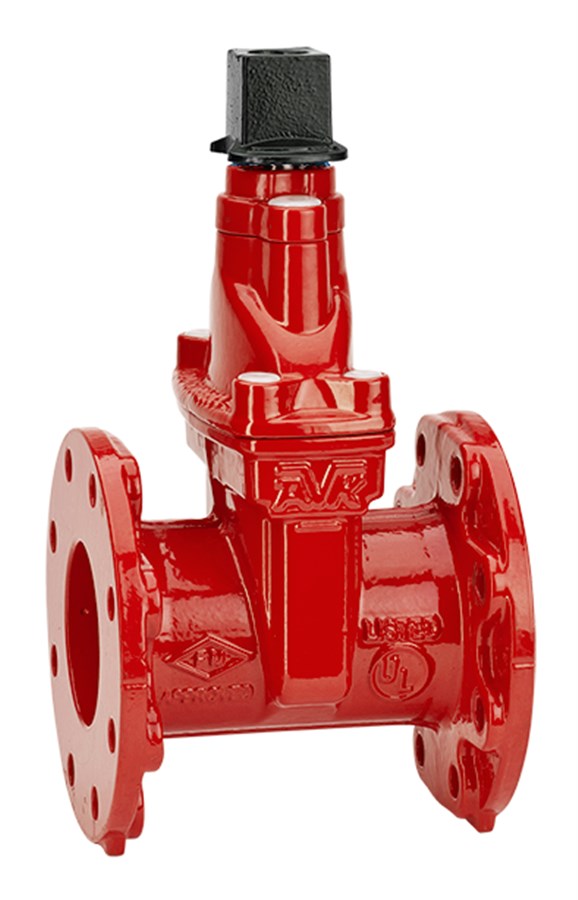

Flanged gate valve with wrench nut - UL/FM approved for fire protection applications to max. 70° C
AVK gate valves are designed with built-in safety in every detail. The wedge is fully vulcanized in a double bonding process with AVK’s own drinking water approved EPDM rubber compound which features a very low compression set resulting in an outstanding ability to regain the original shape after having been compressed. A triple stem seal system, a high strength stem and a thorough corrosion protection safeguard the unmatched reliability.
Variant 145/40-003 | |
---|---|
Connection: | Flanged |
Material: | Ductile iron |
DN: | DN65 - DN200 |
PN: | ANSI CL150 |
Closing direction: | Clockwise to Close |
Features
-
Fixed, integral wedge nut prevents vibration
-
Wedge core in ductile iron, fully encapsulated in drinking water approved EPDM in a 2-step vulcanization process that leaves a very strong rubber-iron bond preventing corrosion underneath the rubber. No iron parts are exposed to the water
-
A large through bore in the wedge eliminates collection of stagnant water which might cause contamination
-
Wedge shoes integrated in the rubber
-
Stem in C99500, low lead, low zinck copper alloy
-
Stem seal with one lower main O-ring backed up by two upper O-rings in a polyamide bearing replaceable under pressure
-
Round bonnet gasket, fixed in a groove in the bonnet preventing it from being blown out in pressure surges
-
Counterbored and hot melt sealed bonnet bolts in high grade A4 stainless steel, encircled by the bonnet gasket preventing contact with the water
-
Full bore and clear way
-
Low operating torque
-
Fusion bonded epoxy coating, RAL 3000, acc. to DIN 3476
Downloads
Datasheet
Appendix
Reference nos. and dimensions:
Scroll for more info
AVK ref. no. | DN mm |
L mm |
H mm |
W mm |
H3 mm |
Theoretical weight/kg |
---|---|---|---|---|---|---|
145-065-40-02116120 | 65 | 190 | 267 | 178 | 356 | 13 |
145-080-40-02116120 | 80 | 203 | 304 | 191 | 399 | 17 |
145-100-40-02116120 | 100 | 229 | 322 | 229 | 436 | 22 |
145-150-40-02116120 | 150 | 267 | 409 | 280 | 549 | 43 |
145-200-40-02116120 | 200 | 292 | 502 | 352 | 674 | 76 |
Enquiry
Scroll for more info
Components
1. | Bolt | Stainless steel A4 |
2. | Washer | Stainless steel A4 |
3. | Wrench nut | Cast iron |
4. | Bearing | Polyamide |
5. | O-ring | NBR rubber |
6. | Gland flange | Ductile iron GJS-500-7 (GGG-50) |
7. | O-ring | NBR rubber |
8. | Thrust collar | Brass DZR CW602N |
9. | O-ring | NBR rubber |
10. | Bonnet | Ductile iron GJS-500-7 (GGG-50) |
11. | Stem | Cu/Ni alloy, C99500 |
12. | Bonnet gasket | NBR rubber |
13. | Wedge nut | Brass DZR CW626N |
14. | Wedge core | Ductile iron GJS-500-7 (GGG-50) |
15. | Wedge rubber | EPDM rubber |
16. | Body | Ductile iron GJS-500-7 (GGG-50) |
17. | Bolt, socket head | Stainless steel A4 |
18. | Bolt, socket head | Stainless steel A4 |
19. | Wedge shoe | Polyamide |
Test/Approvals
- Hydraulic tests according to FM and UL Standards
- Seat 375 psi, shell 500 psi, closing torque test, full travel operational test.
- FM Approved, UL listed
Standards
- FM 1120/1130, UL 262
- Face-to-face dimension according to ANSI B16.10
- Flange drilling to ANSI class 150.
