AVK/WW-EUROVALVE HAND LEVER

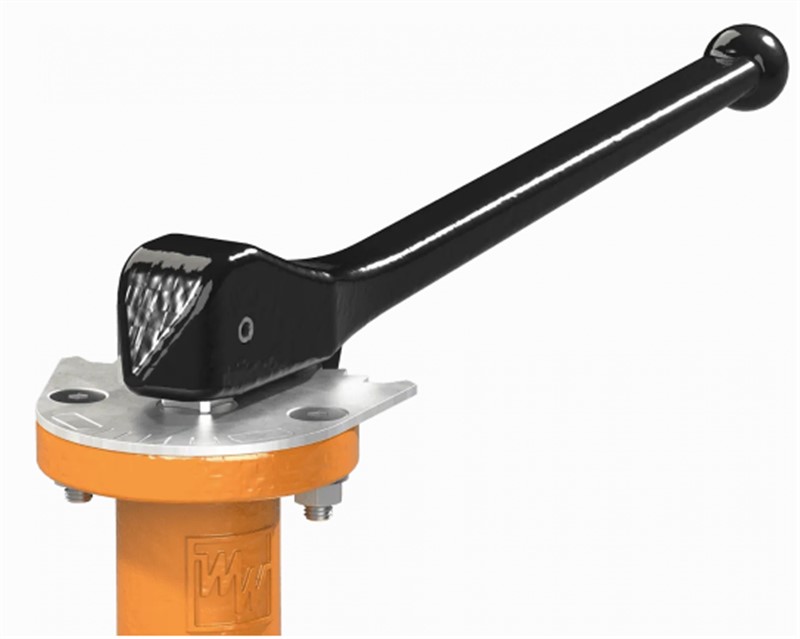

Polyester coated dutile iron hand lever for operating butterfly valves serie 75
These hand levers are designed for the quick manual operation of the AVK/WW-Eurovalves series 75, for open/close or regulating purposes. They fit all series 75 valves up through DN300 (DN250+ in low pressure applications only).
| Variant 75/103-001 | |
|---|---|
| Material: | Ductile iron |
| DN: | DN80 - DN300 |
Features
- Coated with black polyester
- Notch plate in galvanized steel for high corrosion protection
- 10 positions including open and closed
- Operates butterfly valves up to 16 bar for DN200 and below or 2.5 bar for DN250 and DN300
Downloads
Datasheet
Reference nos. and dimensions:
Scroll for more info
| AVK ref. no. | Bolt No. 1 |
A mm |
B mm |
S mm |
DN mm |
Actuator flange |
Theoretical weight/kg |
|---|---|---|---|---|---|---|---|
| 75-10-250-3 | St. St. | 112 | 250 | 10 | 80/16bar | F07 | 1.0 |
| 75-10-250-310 | Galv. St. | 112 | 250 | 10 | 80/16bar | F07 | 1.0 |
| 75-12-250-3 | St. St | 112 | 250 | 12 | 125/16bar | F07 | 1.0 |
| 75-12-250-310 | Galv. St. | 122 | 250 | 12 | 125/16bar | F07 | 1.0 |
| 75-16-315-3 | St. St. | 121 | 315 | 16 | 200/16bar | F07 | 1.4 |
| 75-16-315-310 | Galv. St. | 121 | 315 | 16 | 200/16bar | F07 | 1.4 |
| 75-24-500-4 | St. St. | 184 | 500 | 24 | 300/2.5bar | F10 | 3.2 |
| 75-24-500-410 | Galv. St. | 184 | 500 | 24 | 300/2.5bar | F10 | 3.2 |
Enquiry
Scroll for more info

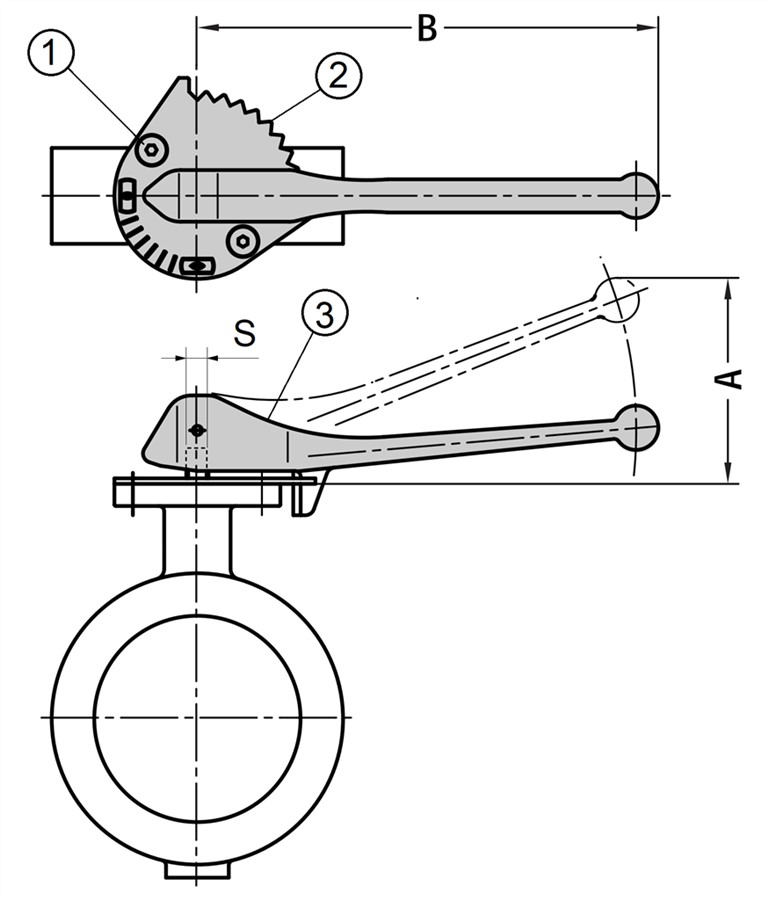

Components
| 1. | Bolt | |
| 2. | Notch plate | Steel, galvanized |
| 3. | Lever | Ductile iron GJS-400-15 |
